The Geometry Problem You're Overlooking in Your Piping Systems
You don't need a cracked pipe to have a failing piping system. Just two degrees of misalignment will do it.
Most engineers working at sea already know that materials matter, corrosion matters, and vibration matters. But geometry? The quiet, invisible details of how a pipe meets a flange or how a tube sits inside a clamp often get overlooked. Especially in fast-paced maintenance windows when the goal is simply to get the line back in service.
Yet misalignment is one of the most persistent, underrated causes of premature failures in marine piping. It's subtle. It hides well. And it tends to reveal itself only when the vessel is far from port and the engineering team is juggling ten other priorities.
From our experience supporting marine engineers every day, we want to shed light on this hidden cost. The small imperfections that quietly grow into big maintenance headaches at sea.
Why Misalignment Matters More at Sea
On land, a misaligned connection often survives long enough for someone to spot it during routine maintenance. At sea, the environment amplifies every flaw. A pipe that's off by just a few degrees sets off a chain reaction. Extra mechanical stress accumulates on clamps and supports. Gaskets and flanges lose uniform contact. Vibration patterns change subtly. Wear accelerates at very predictable, and preventable, locations.
Take a case documented by Reda, Noor, and Karrech in the Journal of Pipeline Science and Engineering not long ago. They describe a 36-inch subsea gas pipeline that failed just fourteen days after startup. The cause? Excessive misalignment at a girth weld. To pass quality control, the welder had ground down the area around the root where the misalignment was worst. In doing so, he inadvertently removed the corrosion-resistant alloy layer. The exposed carbon steel couldn't handle the sour gas service. The result was a rupture that could have been avoided with better attention to geometry.
Marine conditions essentially magnify the problem. The ship's motion, the constant load cycling, and the dynamic pressure variations mean that a small misalignment isn't just a tolerance issue. It's a stress concentrator. And stress concentrators always win eventually.
The Real Impact of One to Three Degrees
It doesn't take much. A flange that's slightly out of parallel. A tube installed with just a bit of force. Both create measurable distortion.
Over time, the gasket begins to compress unevenly. The bolts take on additional bending load. The pipe wall itself experiences micro-strain. Supports begin to transfer weight in ways they weren't designed to. And as the vessel moves, pitching, rolling, vibrating, those small stresses accumulate. What starts as geometry becomes fatigue. Fatigue becomes wear. Wear becomes leakage. Leakage becomes corrosion. It's a slow domino effect, and the root cause often doesn't reveal itself until the final domino falls.

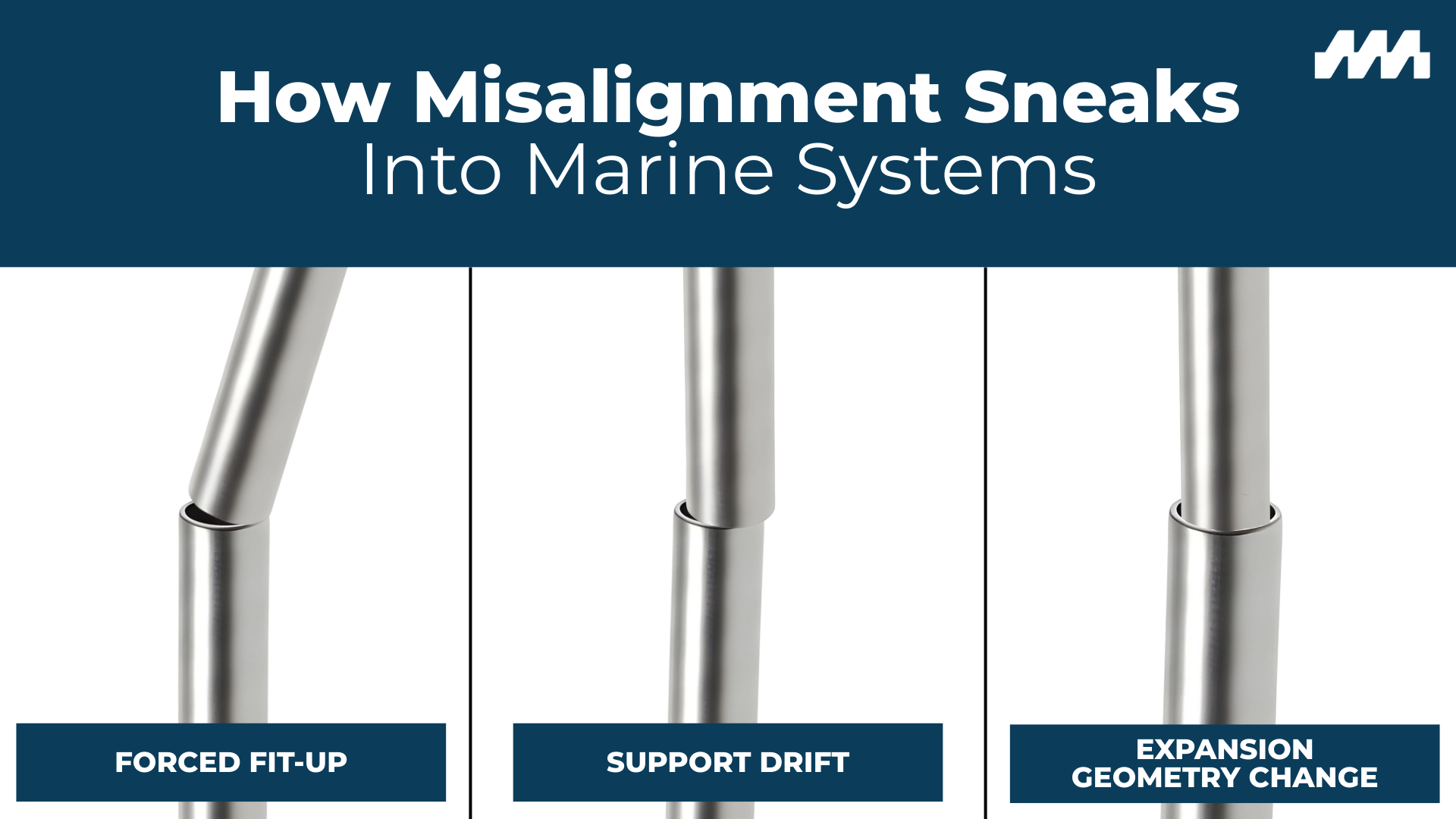

How Misalignment Sneaks Into Marine Systems
Tight spaces lead to forced fit-ups. Sometimes the pipe almost lines up, and with limited access, the temptation is to tighten bolts until things settle into place. But metal doesn't forget. It stores that stress.
.png)
Supports shift over time. Marine vibration slowly migrates clamps and saddles unless they're perfectly tightened and inspected. A few millimeters of drift at one support ripple through the entire run. Thermal expansion changes geometry in small ways. A pipe that expands just a little in one direction makes adjacent joints misaligned by degrees, not millimeters. Previous repairs create imperfect baselines. A replacement section fabricated during dry dock may be almost the right angle. But "almost" holds up only until the next sea state picks a fight with it.
Misalignment doesn't start big. It starts with "good enough." And at sea, good enough rarely is.
Third time in six months we've changed this gasket. Same flange. Same side. Same hours.
We checked the pump. We checked the pressure. Everything was fine.
Until someone looked at the support one meter away. It had shifted four millimeters. Vibration had moved it just enough that the flange had been working crooked the whole time.
That's not a gasket problem. That's a geometry problem nobody checked.
One of the challenges is that misalignment rarely causes immediate failure. Instead, it leaves a trail of clues, if you know what to look for.
Recurrent leaks at the same flange, when you fix a leak and it returns months later, misalignment is the likely culprit. Unusual wear patterns on gaskets or seals, a gasket that compresses deeper on one side is telling its own story. Vibration felt in a localized section of pipe, geometry issues often create resonance hot spots. Supports or hangers carrying weight unevenly, a support that looks worked or strained is usually reacting to something upstream.
Engineers often notice these symptoms long before realizing their root cause.
How to Reduce the Hidden Cost
Misalignment isn't something you eliminate once and forever. You manage it, the same way you manage vibration, corrosion, or wear.
Engineers don't need perfect geometry on every run. They need a mindset that catches small problems before they snowball into failures. And fortunately, preventing misalignment doesn't require specialized tools or extended downtime. It starts with awareness and a few simple habits that fit naturally into everyday maintenance.
One of the most powerful habits is learning to trust your eyes and your intuition. If something "almost fits," that's usually your first warning. A flange that needs a little extra force. A pipe hanger that doesn't sit exactly where it used to. A tube that seems like it wants to spring back. Those subtle cues are often more accurate than a caliper. When something looks slightly off, it is off. Tightening it into place only stores stress for later.
If you're forcing a bolt into a flange with a pry bar, you've already failed the install. Stop. And start over.
In the rush of day-to-day work, it's tempting to muscle components into alignment, especially when space is tight or time is limited. But every forced connection creates hidden strain that travels through the whole line. Seeing these situations as red flags, rather than quick fixes, changes the entire maintenance culture onboard.
Support systems also deserve more attention than they usually get. Engineers often look for big issues. Broken clamps. Cracked welds. But misalignment often begins with a support that shifted just a few millimeters from vibration or thermal expansion. Checking for these subtle signs during routine rounds helps prevent load redistribution that stresses joints downstream.
Documentation is another underrated tool. When a section of piping has a history of misalignment, or when a temporary workaround was used during a busy port call, leaving a clear note ensures the next engineer understands what they're inheriting. Many recurring leaks are not new problems. They're old geometry issues resurfacing because no one knew what happened last time.
And finally, every gasket tells a story. Uneven compression. Tearing on one side. Patterns of imprinting. All reveal how the joint behaved under real conditions. Instead of tossing used gaskets immediately into the trash, taking a moment to read these clues can save hours of troubleshooting later.
Perfect geometry may be impossible on a ship. But intentional geometry is not.
Every time an engineer chooses awareness over speed, observation over assumption, and alignment over force, the entire piping system becomes more reliable. These small habits, practiced consistently, reduce unplanned maintenance, extend component life, and protect the vessel from failures that are avoidable.
Not with more money or more time. But with better attention to the details that matter.
