When a single bolt can mean the difference between a smooth voyage and a critical failure, fasteners stop being simple hardware, they become lifelines. Metric fasteners play a pivotal role in marine engineering, where safety, performance, and compliance hinge on precision. ISO-standard threading ensures global consistency and mechanical reliability, even under punishing offshore conditions. Specialized materials and anti-corrosion coatings provide essential protection against saltwater damage. Beyond their physical properties, the integrity of these components depends on factors like torque control, load distribution, resistance to vibration, and traceability, each one a safeguard against disaster.
Built for the Sea: Why Metric Fasteners Are Essential to Marine Engineering
When your vessel is hundreds of miles offshore, every bolt matters. Marine engineers know that the line between operational reliability and failure often comes down to something as small as a fastener. But not just any fastener, those designed under precise metric standards, manufactured with high-performance materials, and rigorously tested to survive corrosion, vibration, and immense mechanical loads. This blog dives into why metric fasteners aren’t just standardized parts, they’re engineered lifelines for the modern marine industry and the broader scope of marine equipment reliability.
Standardization and Precision in ISO Metric Threading Systems
Metric fasteners form the structural backbone of marine assemblies, designed to ensure predictable performance under international regulations. The ISO metric threading system, governed by ISO 68-1 and ISO 965, offers engineers global consistency in thread profiles, pitch diameters, and tolerance classes.
Take the M12×1.75 fastener, its 4H/6g tolerance range helps reduce variability while increasing fatigue resistance. A key factor in this performance lies in the optimized root radius, with a minimum of 0.125P, reducing stress concentration and extending service life under fluctuating loads. These details matter deeply in marine contexts where bolts must endure vibration, pressure changes, and salt-laden air for decades.
Compared to UNC threads, the finer pitch of metric threads provides better resistance to loosening under vibration, a major concern in marine environments (SANNKE, 2024). That’s why global regulators mandate their use. For instance, DNVGL-ST-0378 requires metric threading for all class-approved repairs, and ABS Rules (2023, Part 4) specify ISO 898-1 Grade 8.8 or above for load-bearing applications. These requirements don’t just streamline international compliance, they minimize the risk of component misfits and ensure smooth integration into complex systems. Standardized threads also simplify sourcing during emergency ship repair, reducing downtime. This is why engineers around the world rely on metric tools to ensure proper fit, torque, and safety.
Corrosion Resistance and Material Science for Marine Environments
Onboard a vessel, corrosion is the enemy that never sleeps. In harsh saltwater conditions, the wrong fastener material can lead to unplanned drydockings and sky-high replacement costs. That’s why material science is not an afterthought, it’s mission-critical.
Stainless steel 316L, super duplex alloys like S32750, and titanium are the preferred materials. Their corrosion resistance is quantified using the Pitting Resistance Equivalent Number (PREN), with 316L scoring 25–30, S32750 above 40, and titanium virtually immune to pitting. In subsea hardware, where maintenance is near impossible, these materials aren't a luxury, they’re a necessity.
Engineers also rely on coatings such as PTFE-based Xylan 1014, which lowers friction and enhances corrosion resistance. More advanced options like HVOF-applied WC-10Co-4Cr coatings outperform chrome plating in salt spray tests (Wu et al., 2021). And in cathodically protected systems, materials must maintain compatibility at -900 mV (Ag/AgCl) to avoid galvanic decay over 25+ years (DNV-RP-C101).
Another substitute for conventional coatings is Molykote DX Paste, a lithium-based grease formulated for clean lubrication and corrosion inhibition. While not a hard coating like PTFE or HVOF systems, DX Paste is widely used in threaded assemblies to prevent galling, reduce friction, and shield metal surfaces from moisture-induced oxidation. Its long-term stability under heavy loads makes it a practical choice for fasteners in marine environments where both lubrication and corrosion resistance are critical.
Load-Bearing Capacity and Mechanical Properties

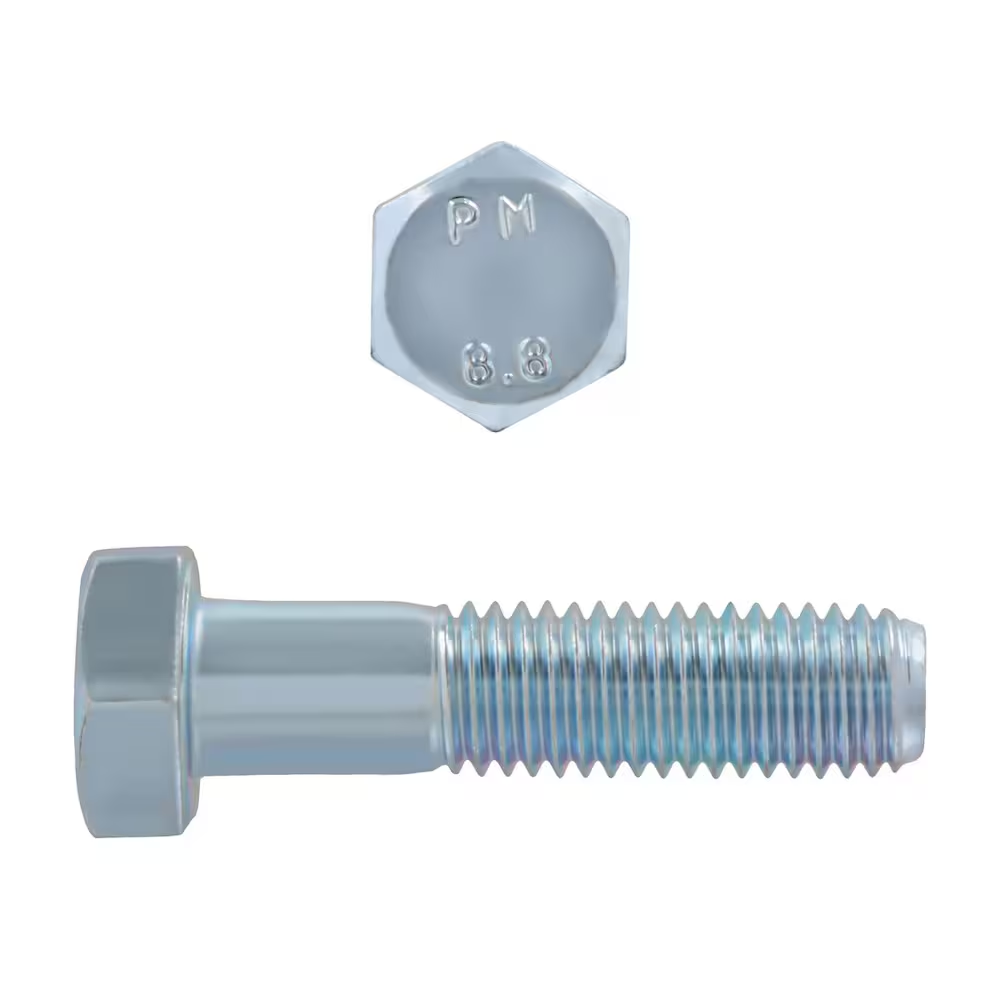

You wouldn’t trust a lightweight fastener to hold your engine bed together, and you shouldn’t. Fasteners in critical areas must meet strict mechanical thresholds, guided by the ISO 898-1 standard. Grade 8.8 fasteners (800 MPa tensile, 640 MPa yield) are suitable for general applications, but Grades 10.9 and 12.9 are essential for high-load locations like crane foundations or rudder stocks.
Whether it’s propulsion or structural reinforcement, fasteners are a non-negotiable aspect of vessel maintenance. Proper installation also matters. Engineers calculate preload using VDI 2230, ensuring bolts apply enough clamping force to withstand fluctuating loads:
Preload = 0.7 × Rp0.2 × As
Ignore this, and you invite fatigue, loosening, or even catastrophic failure. In marine engineering, where systems are constantly exposed to shifting forces and vibrations, the fastener isn’t just a piece of hardware, it’s part of your structural insurance policy.
Vibration Resistance, Locking Mechanisms, and Torque Control
Life at sea is full of motion, and your fasteners need to keep up. Without anti-loosening measures, even the most robust design can unravel under vibration.

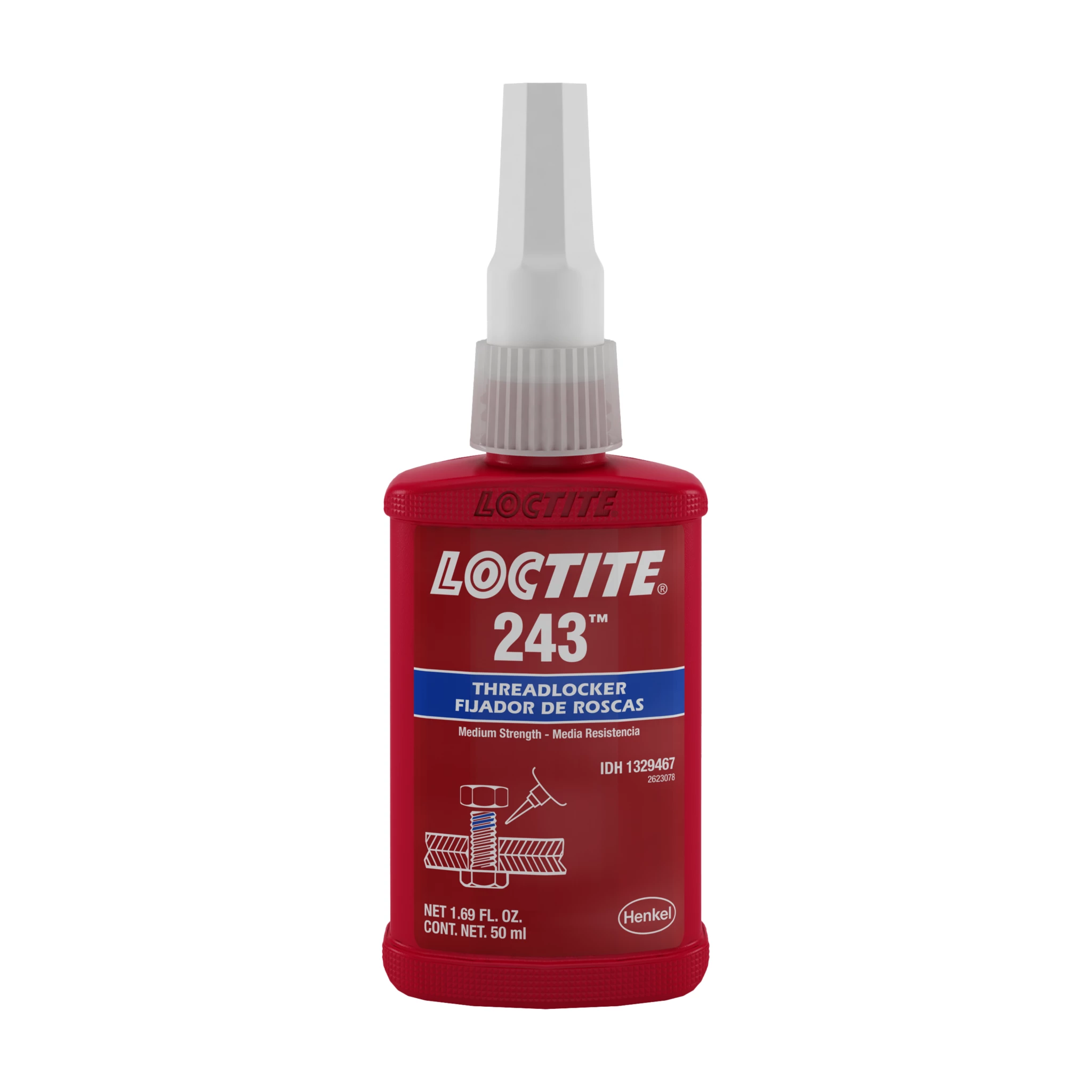

Nord-Lock washers, tested under DIN 65151, maintain bolt tension over 1,200 cycles at 50 Hz. For less permanent locking, thread-lockers like Loctite 243 are a go-to, though they can complicate disassembly. In load-critical zones like rudder posts, engineers still favor castellated or double-nut systems to lock things down mechanically.
When it comes to tightening, precision matters. Many OEMs, such as MAN B&W, mandate torque-plus-angle methods to achieve preload accuracy within ±5% a standard also reflected in ABS protocols. Imagine torquing a bolt to 300 N·m and rotating it 90° to lock it in, that’s what ensures propellers stay where they belong. For high-frequency systems like HVAC and propulsion on large vessels, particularly in cruise ship maintenance, locking systems ensure long-term integrity.
Compliance with Industry Standards and Traceability
Trust in fasteners isn’t just built on metallurgy and design, it’s verified by documentation. Marine-grade metric fasteners must meet a suite of global standards:
- ISO 3506 for stainless steel mechanical properties
- ISO 898-1 for carbon steel fasteners
- EN 10204 3.1 certification for full material traceability
- ASTM F1940 for hydrogen embrittlement resistance in high-strength grades
Class societies like ABS and DNV demand non-destructive testing (e.g., MPI) for load-bearing parts, especially Grades 10.9 and higher. In critical zones, a lack of certification can be a red flag that costs more than money, it can cost safety.
Suppliers of cruise ship supplies must also meet rigorous documentation standards, especially when dealing with fasteners used in passenger-critical areas. Brands producing European marine tools, such as those certified by TÜV or CE standards, often lead the market in quality assurance and compliance.
A Real-World Lesson: The Cost of Overlooking Fastener Integrity
On December 18, 2012, during drilling operations in the Gulf of Mexico, the lower marine riser package (LMRP) of an ultra-deepwater drillship separated from the blowout preventer (BOP), resulting in the spill of approximately 432 barrels of synthetic-based drilling fluids. The incident was attributed to the failure of H4 connector bolts on the LMRP. Subsequent analysis revealed that the primary cause was hydrogen-induced stress corrosion cracking due to hydrogen embrittlement. It was also discovered that a subcontractor had used an outdated American Society for Testing and Materials (ASTM) bolting standard and had not performed post-electroplating treatment on the bolts. At the time, the operator's audits were limited to first-tier suppliers, allowing the issue with a third-tier supplier to go undetected. As a result, the bolt manufacturer initiated a global replacement of over 10,000 H4 bolts to prevent similar failures (Musarra, S. P. 2015).
Precision That Pays Off
Engineers don’t just need metric fasteners, they need reliability, traceability, and durability forged into every thread. In marine systems where salt, stress, and time are constant forces, metric fasteners provide a universal language of performance and safety. The next time you’re tasked with a critical repair or retrofit, remember: the quality of your fastener might be invisible, but its failure won’t be.
References:
ASTM International. (2019). ASTM F1940-07a(2019) Standard Test Method for Process Control Verification to Prevent Hydrogen Embrittlement in Plated or Coated Fasteners. https://www.astm.org/f1940-07ar19.html
Industrial Fasteners Institute. (2012). ISO Fastener Standards Should Be Referenced for All Metric Fasteners from https://media.indfast.org/wp-content/uploads/2022/11/ISO-Fastener-Standards-Should-Be-Used-for-All-Metric-Fasteners.pdf
Leyton Fasteners. (2023). What Are The Best Materials For Marine Fasteners? from https://leytonfasteners.co.uk/what-are-the-best-materials-for-marine-fasteners/
Musarra, S. P. (2015, October 14). Subsea Systems. Offshore Magazine. Retrieved from https://www.offshore-mag.com/subsea/article/16758413/subsea-systems
SANNKE. (2024). ISO Metric Thread: A Guide to Global Standard Fastening from https://www.sannke.com/news/iso-metric-thread/
STANLEY® Engineered Fastening. (n.d.). Vibration Loosening Resistance. from https://www.stanleyengineeredfastening.com/en/brands/Optia/Spiralock/Vibration-Loosening-Resistance
US Corrosion Services. (n.d.). ASTM F1940 Hydrogen Embrittlement Testing from https://uscorrosion.com/index.php/astm-f1940-testing-services-for-hydrogen-embrittlement-of-fasteners/
Wu, M., Pan, L., Duan, H., & Yu, S. (2021). Study on Wear Resistance and Corrosion Resistance of HVOF Surface Coating Refabricate for Hydraulic Support Column. Coatings, 11(12), 1457. https://doi.org/10.3390/coatings11121457
